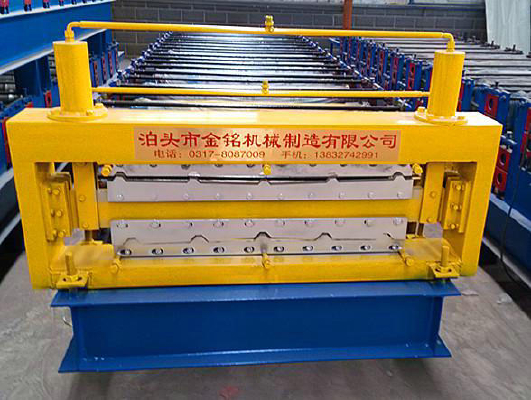

840/900 dual-type roof tile press forming plate forming by the discharge, forming, cutting after forming composition, the upper 900 to 840 lower. Full solid shaft pressure beautiful appearance of smooth, paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, machine garages, hangars, stadiums, exhibition halls, theaters and other room surfaces and wall.

840/900 dual-type roof tile press plate forming its components include: machine, PLC computer control system, hydraulic pump station system, automatic cutting system after the device features: the device uses a high level of color steel automatic control software, production information management. The entire unit automation control system uses a highly integrated network, automation systems and better performance. The double tile press also has the operation, maintenance, service and commissioning of machinery, molds advantages of easy replacement.

840/900 dual-type roof tile press plate forming the main technical parameters:

1. Installation size: 6500mm × 1200mm × 1800mm

2. Forming channel number: 11 (840) 10 (900)

3. Roller material: 45 # steel

4. The roller plating thickness: 0.05mm

5. Cutter Material: Cr12

6. Forming speed: 9-10m / min.?

7. The electronic control system: Industrial computer PLC control components fully applied and Taiwan, West Germany, and other well-known brands Chint combination of components assembled

8. Frequency: Anti-knife accurate counting function (optional)

9. Host power: 3kw with 4 planetary cycloid reducer mechanical and electrical equipment: Mengniu brand

10. Hydraulic station power: 3kw

11. Sheet thickness: 0.3-0.8mm

12. Expand the sheet width: 1000mm

13. Drive (optional)
