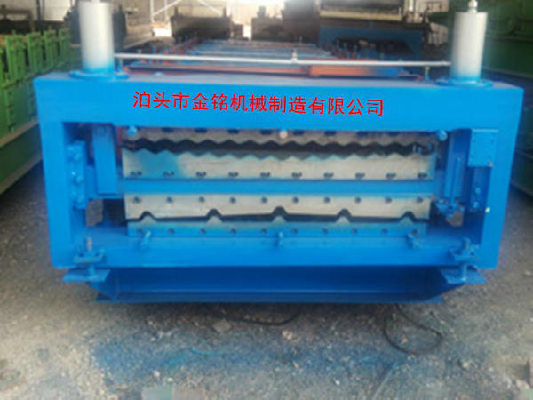

850/900 type forming part of a double tile press include: machine, PLC computer control system, hydraulic pump station system, automatic after cutting system. Features: The steel tile equipment uses a high level of automatic control software, production information management. The entire unit automation control system uses a highly integrated network, automation systems and better performance. 860/910 type machine also has a double operation, maintenance, mechanical maintenance and debugging advantages of easy mold replacement. 860/910 type layer molded tile press by the discharge, forming, cutting after the molding composition, the products beautiful appearance of smooth, paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses , machines garages, hangars, stadiums, exhibition halls, theaters and other room surfaces and wall. Its components include: machine, PLC computer control system, hydraulic pump station system.

860/910 type double molding pressure tile machine performance parameters:

1. Installation size: 6500mm × 1200mm × 1500mm

2. Forming channel number: 11 (840) 9 (910)

3. Roller material: 45 # steel

4. The roller plating thickness: 0.05mm

5. Cutter Material: Cr12

6. Forming speed: 9-10m / min

7. The electronic control system: Industrial computer PLC control components fully applied and Taiwan, West Germany, and other well-known brands Chint combination of components assembled

8. Frequency: Anti-knife accurate counting function (optional)

9. Host power: 3kw with 4 planetary cycloid reducer mechanical and electrical equipment: Mengniu brand

10. Hydraulic station power: 3kw

11. Sheet thickness: 0.3-0.8mm

12. Expand the sheet width: 1000mm

13. Drive (optional)
