820 Kok Chi tile press production pressure plate to solve the problems of the conventional series of roof leakage pressure plate, pressure plate connected to break the traditional roof bolted practice installation methods 45-degree locking snap to install, make roofing was more intact.

After the 820 Kok Chi tile press roll forming a pressure plate belongs roof seams, with high peaks, high strength, no side seams, screw lock installation, safe and reliable installation lap, waterproof anti-riot units and strong performance characteristics, and high degree of automation, low cost, convenient and durable, light weight, assembled freely combined.

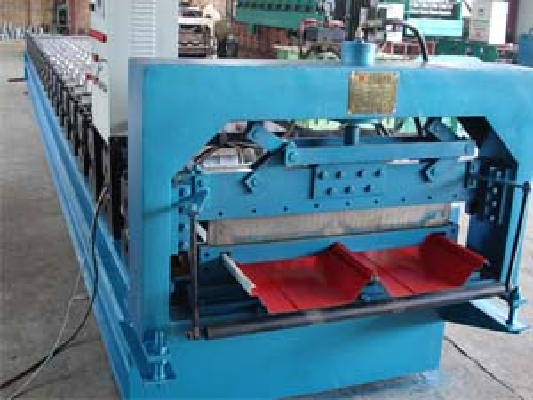

The 820 Kok Chi tile press machine mainly by the discharge, the feed import platform, forming the host, forming cutting device, hydraulic station, computer control system composed of several parts.

Optional equipment ordinary discharge, hydraulic discharge machine.

Kok Chi 820 tile press main technical parameters

1. Installation size: 9500mm × 1300mm × 1400mm

2. Forming word count: 20

3. Roller material: 45 # steel

4. The roller plating thickness: 0.05mm

5. Cut Material: Cr12

6. Forming speed: 0-10m / min.

7. The electronic control system: Industrial computer PLC control

8. Frequency: Anti-knife accurate counting function (optional)

9. Host power: 5.5KW

10. Hydraulic station power: 3KW

11. Sheet thickness: 0.2-0.7mm

12. Expand the sheet width: 1000mm
