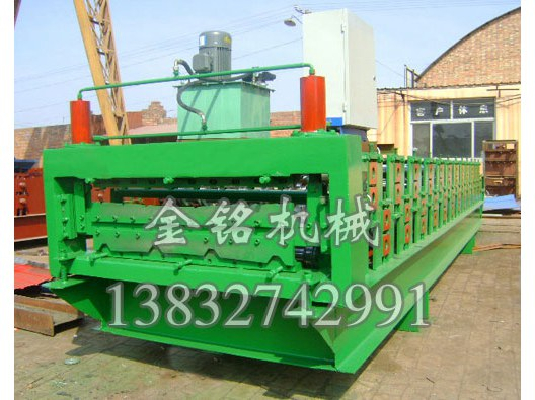

4 peak 840/880 tile press forming by the discharge, forming, cutting after forming composition of the products beautiful appearance of smooth, paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, machine garage, hangars, stadiums, exhibition halls, theaters and other room surfaces and wall. Its components include: machine, PLC computer control system, hydraulic pump station system, automatic cutting system after the device features: the device uses a high level of color steel automatic control software, production information management. The entire unit automation control system uses a highly integrated network, automation systems and better performance.

4 peak 840/880 tile press must use a high number of pulses input function, KDN-K306-24AR the high number of input performance, strong anti-interference ability to choose AB phase. And by setting the interrupt function, to ensure accuracy.

4 peak detection section 840/880 tile press: detecting color steel tile length encoder, pressure-type upper and lower limit switch, upper and lower limit switch cutter, presses down the operation button, the cutter up and down stroke button emergency stop switch, hydraulic start and stop switches and the like.

Operative part 4 peak 840/880 tile press have inverter drive motor, hydraulic motor, two-pressure hydraulic solenoid valves, two hydraulic cutter solenoid valves.

PLC selects KDN-K3 series KDN-K306-24AR. It comes with 14 inputs / 10 relay outputs, just to meet the input and output requirements. Coupled KDN text screen, you can complete the parameter setting, alarm display, help information, production data, and so on.

4 peak 840/880 tile press main technical parameters:

1. Dimensions: 7000mm × 1300mm × 1500mm

2. Forming channel number: 13 (840) 10 (880)

3. Roller material: 45 # steel

4. The roller plating thickness: 0.05mm

5. Cutter Material: Cr12

6. Forming speed: 9-10m / min

7. The electronic control system: Industrial computer PLC control components fully applied and Taiwan, West Germany, and other well-known brands Chint combination of components assembled

8. Frequency: Anti-knife accurate counting function (optional)

9. Host power: 4kw with 5 planetary cycloid reducer

10. Hydraulic station power: 3kw

11. Sheet thickness: 0.3-0.8mm

12. Expand the sheet width: 1000mm
